90.002.04

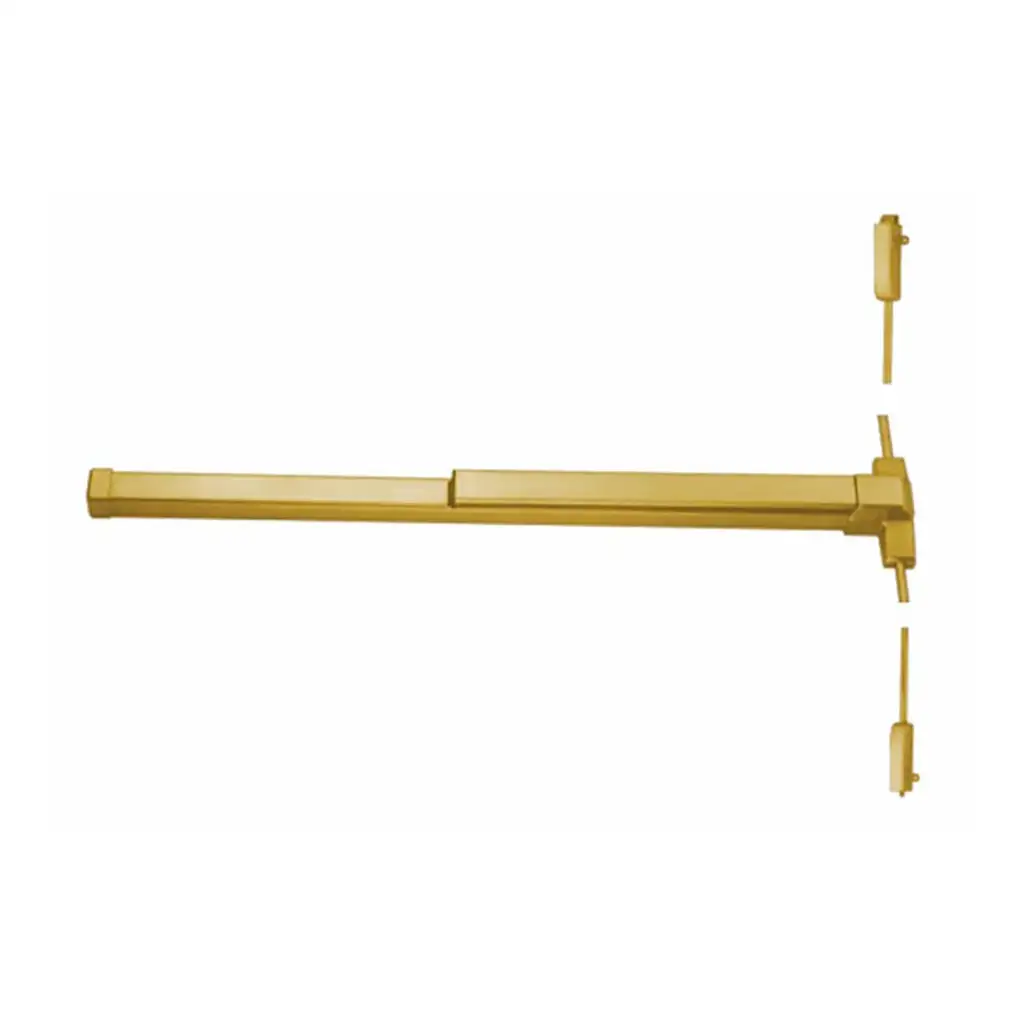

90.002.04 - Image 2
Specification Value
Supplied Length 1045 mm (can be cut to 610 mm)
Door Thickness 50 mm standard, 50-105 mm optional
Door Height 2133 mm standard, 3200 mm optional

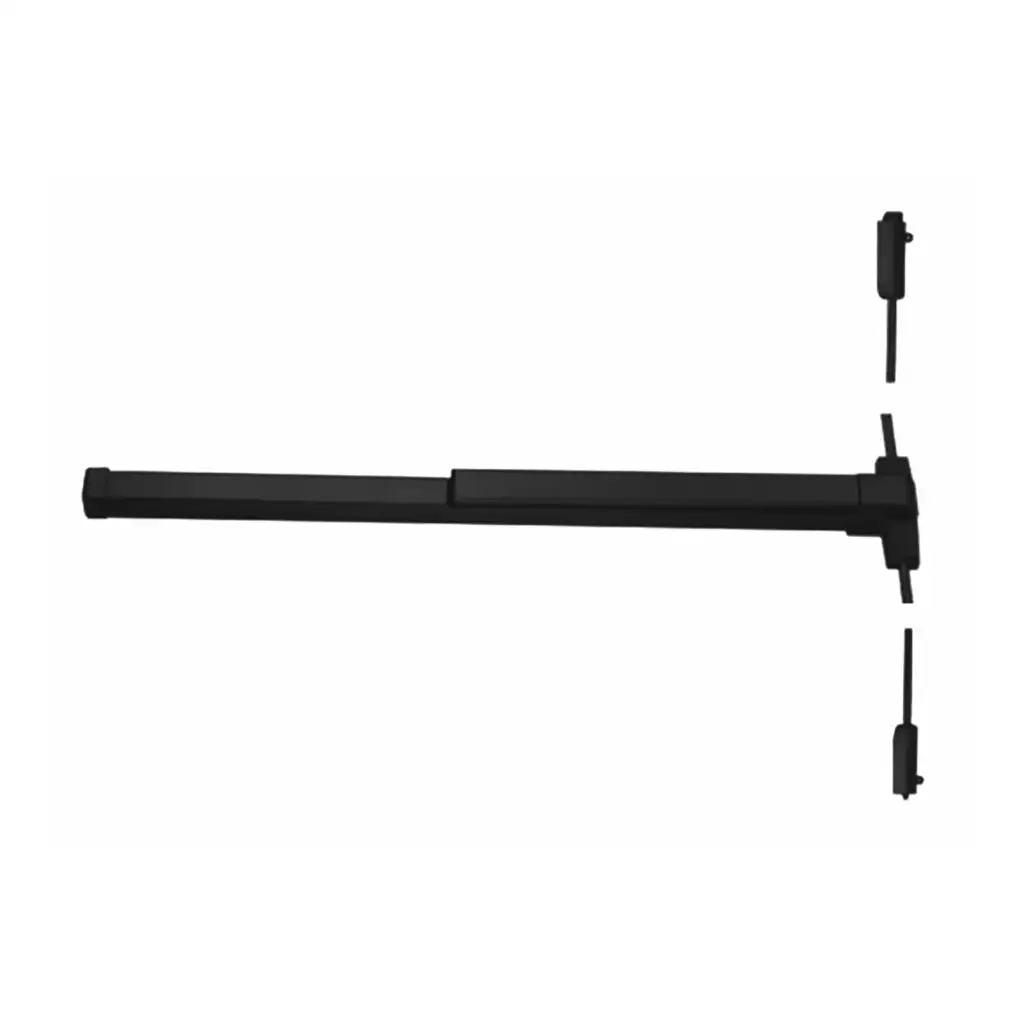

90.002.04

Rim touch panic bolt

  • Non-handed
  • Optional dogging
  • Supplied in length 1045 mm — can be cut on site up to 610 mm to suit door width
  • Supplied to suit door thickness 50 mm
  • Optional extended spindle and bolts for thickness 50-105 mm
  • To suit door height 2133 mm; optional to suit door height 3200 mm
