90.501

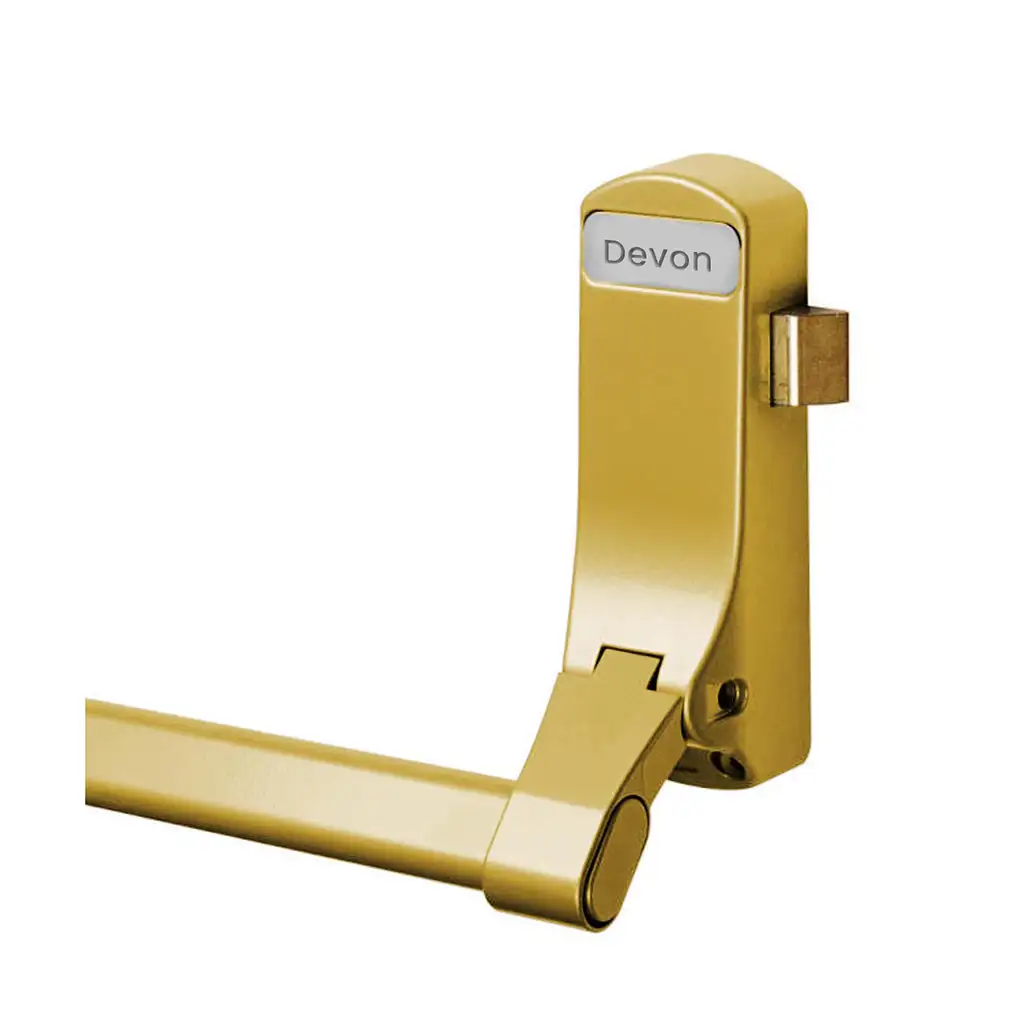

90.501 - Image 2
Specification Value
Locking Single point
Max Door Width 1200mm
Max Door Height 2440mm
Door Handing Non Handed
Standard BS EN 1125:2008
Certification CE, Certifire Approved

90.501

Rim panic latch

  • Designed for single door application — pressing the bar gives immediate exit in emergency situations
  • Single point locking
  • Fire rated for use on timber and steel doors
  • Standard size suitable for door up to 1200mm wide and 2440mm high
  • Special sizes available on request
  • Non Handed
  • Certifies to BS EN 1125:2008
  • CE and Certifire Approved
  • Options: Steel door fixing, Microswitch

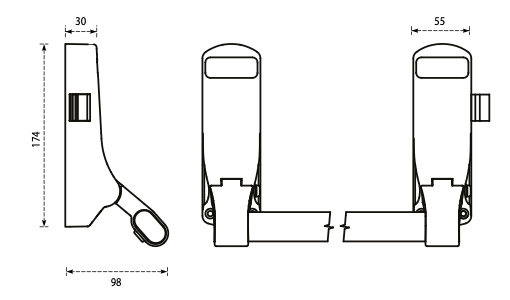

Drawing
Drawing
