89.370
3D Concealed Hinge
• Cover Plates Options: A - Clipped Cover Plates (supplied as standard), B - Cover Plates With Screw Fixing
• Side Adjustment (Horizontal): Use 4mm Allen Key. Turn counterclockwise to increase air gap max. 3mm,
clockwise to decrease.
• Height Adjustment (Vertical): Loosen clamping screws, adjust door position, turn lower height screw to raise/lower.
• Depth Adjustment (In/Out): Loosen fixing screws, align door, retighten clamping screws.
• Fire rating upto : 120 minutes
• All adjustments can be performed with a 4mm (0.157") Allen Wrench.
| Code | Eff. Door Wt (Kg) |
Min. Door Thickness |
Max. Door Wt |

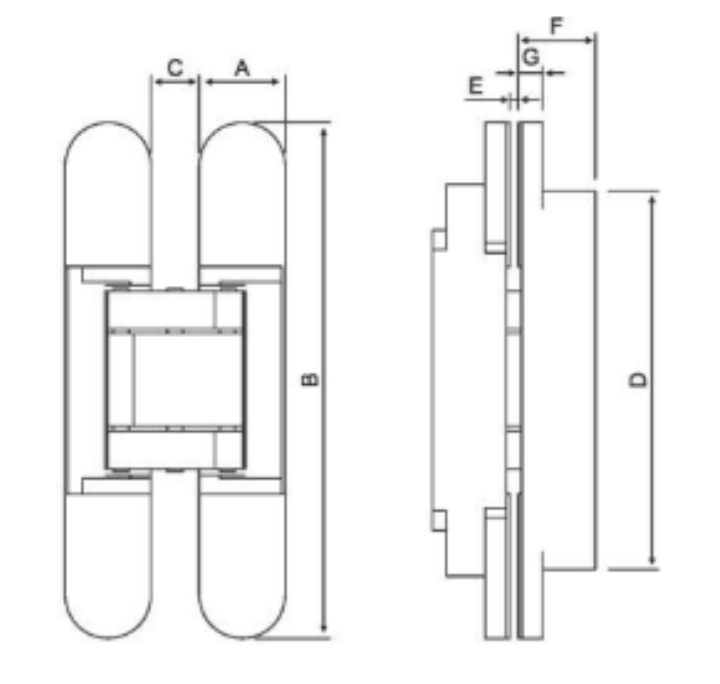

Dimensions | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| 89.370 | 80 | 40mm | 80kg | 28 | 177 | 16 | 145 | 3.5 | 25.5 | 9 |
Weight capacity is based on three hinges per door
