89.343
Stainless steel washered hinges.
With stainless steel fixed pin, stainless steel washers and
button tip at both ends.
• Available with congruent (zig zag) or template
drilled screw holes.
• Suitable for fire rated doors, comply with EN1634.
• For timber door/metal frame application half
wood/half machine screws (size ½ x 12-24)
are supplied. Please specify.
| Code | Length x Width x Thickness MM |
Screws per hinge Countersunk Head |
Effective Door Weight (Kg) |
EN1935 Grade |
||
|---|---|---|---|---|---|---|
| Size | Type | Qty. | ||||

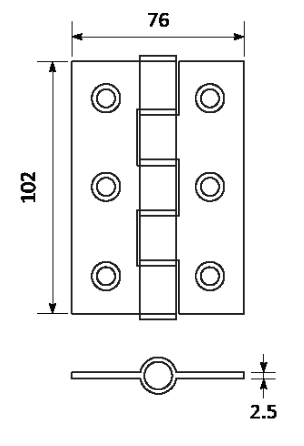

| 89.343 | 102 x 76 x 2.5 | 1¼ x 8 | S/S | 8 | 60 | 10 |
Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead door closer
