89.364

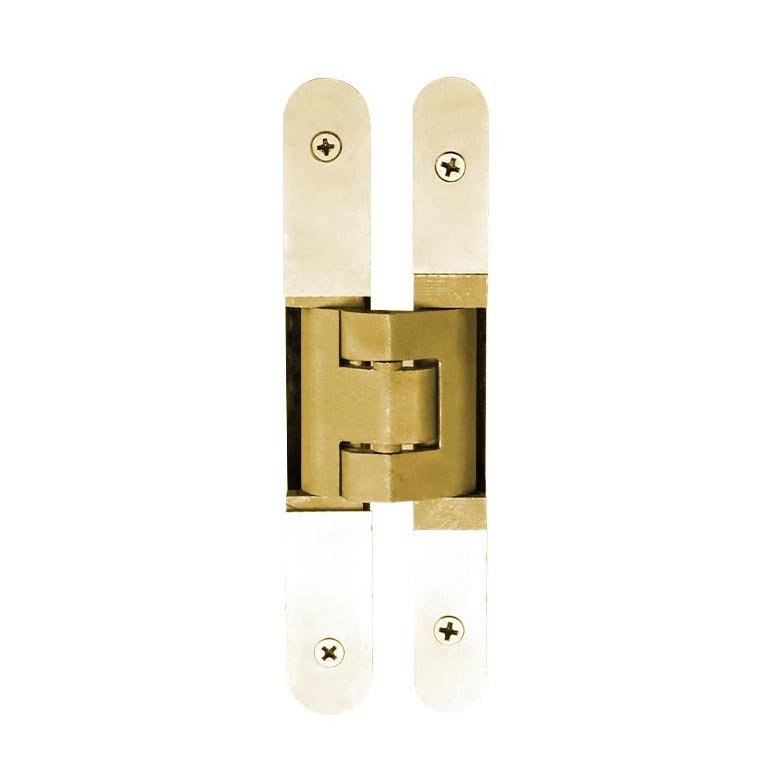

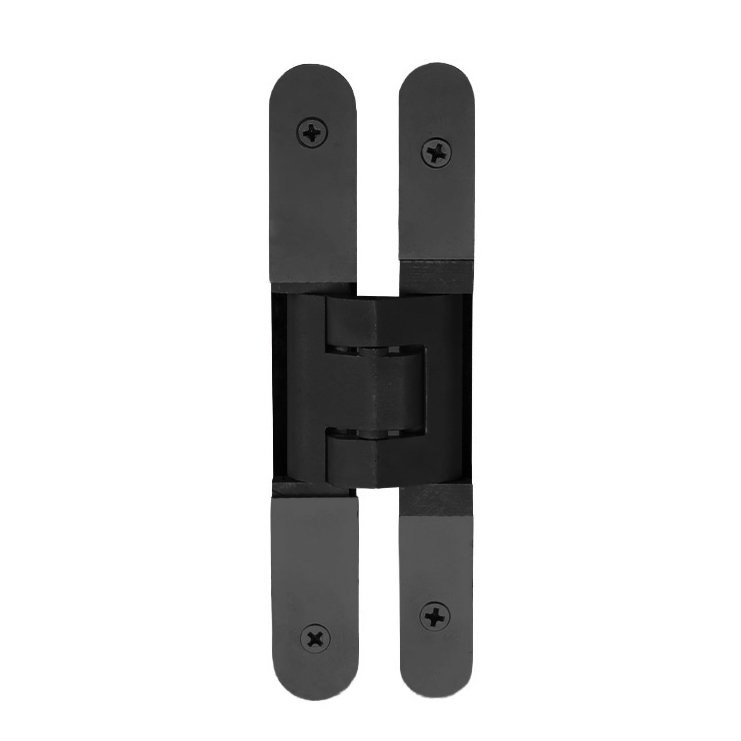

Concealed hinges
3D concealed hinge with clipped cover plates
no screws visible on front plates
Door : Wood door, Steel door, Profile door, Folding door
Standard : DIN EN 1935:2002
Opening angel : ≤ 180°
Adjustment in 3 directions : Side: +/- 3mm, Height : +/- 3mm, Depth : +/- 1mm,
Handed : Non handed design
Material : SS 304
Minimum Door Thickness : 45 mm
Weigh Capacity : 60 kg

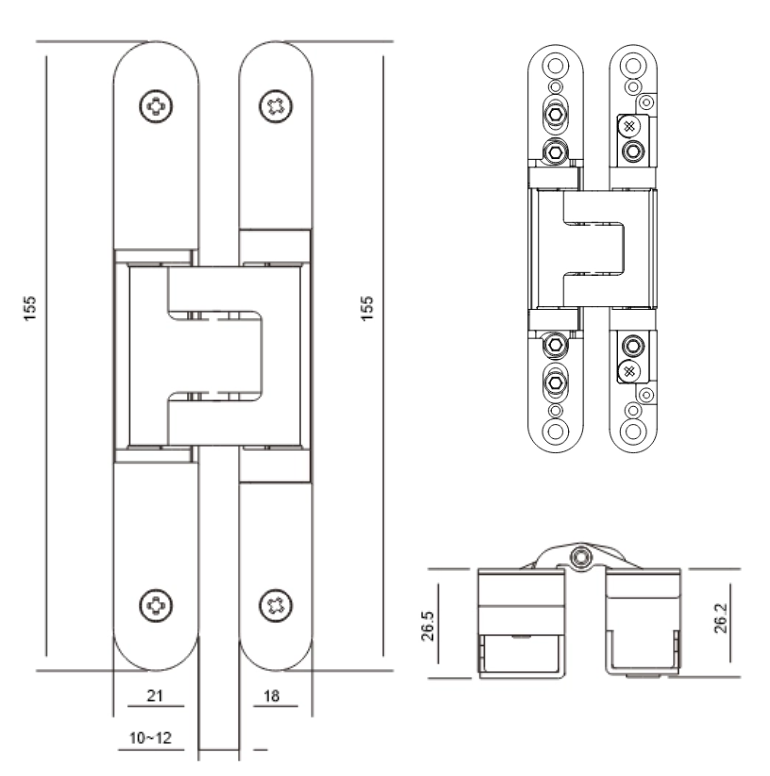

Length : 155mm
Width : 21mm
Fire rating upto :120 munites
Screws per hinge Effective
Length x Width Countersunk Head Door
Code
MM Weight
Size Type Qty. (Kg)
89.364 155 x 211⁄4 x 8 NP 4 60
Weight capacity is based on three hinges per door
