86.252

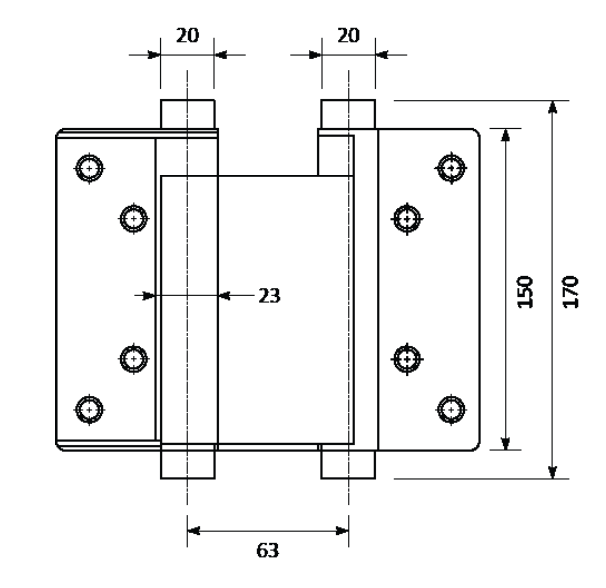

86.252 - Image 2
Code Height Screws per hinge
Countersunk Head		 Effective
Door
Weight
(Kg)
Size Type Qty.
86.252 150 mm 1¼ x 10 S/S 8 50

Weight capacity is based on three hinges per door.
The center hinge should be installed approximately
250 mm from top hinge for maximum support.

86.252

Double action spring hinge
• Door opens in either direction
• Spring tension is adjustable

[product_drawing]
[product_drawing]
