89.375

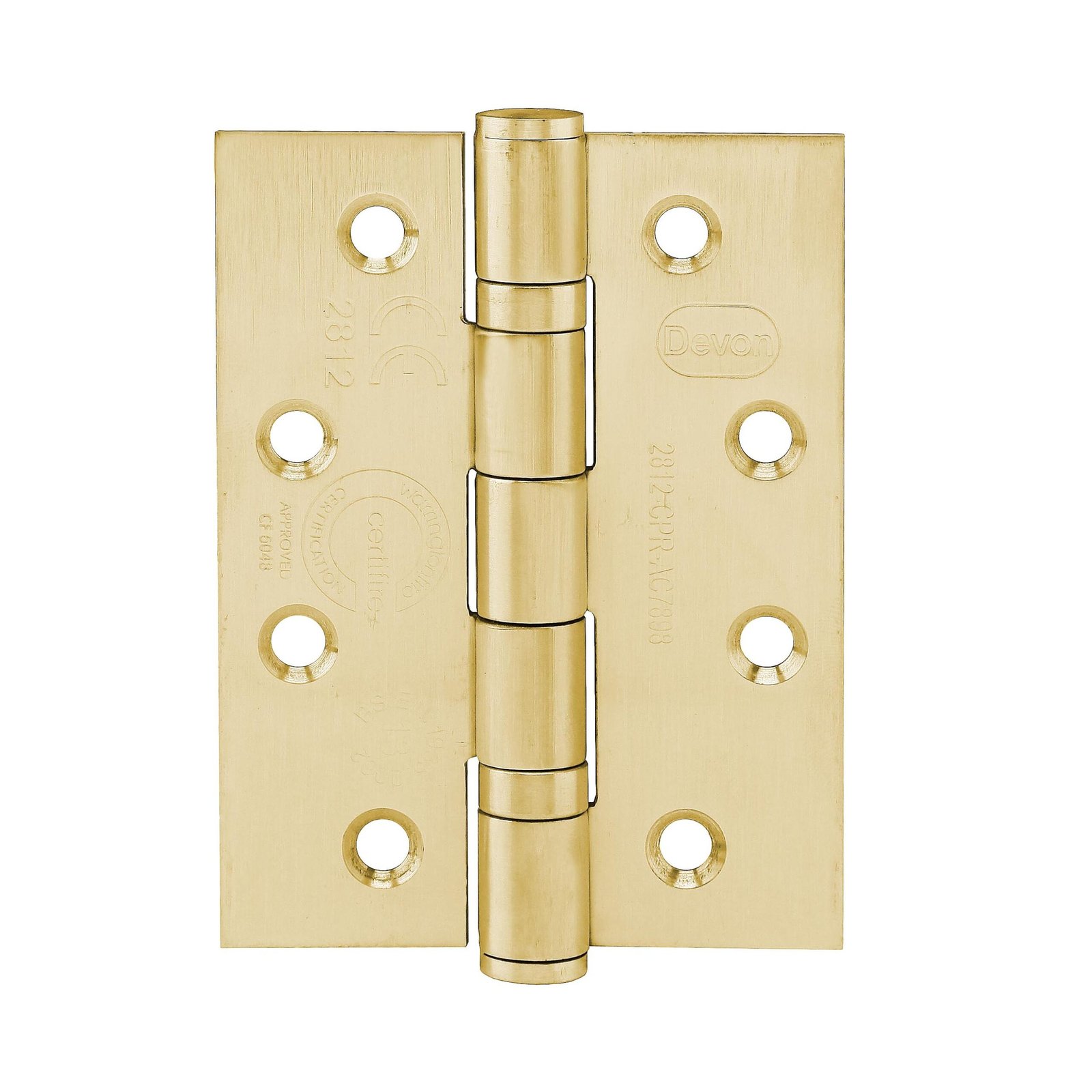

CE 13 BS EN 1935 Certified High Performance Hinges
Stainless steel double ball bearing hinges with high performance design, featuring an extra deep thrust bearing for heavy load applications and long service life. Stainless steel fixed pin ensures durability and strength.
- Template drilled screw holes
- For timber door / metal frame applications, half wood / half machine screws (size ½ × 12–24) are supplied (please specify)
- Certified to EN 1935 Grade 13
- CE certified
- Certifire approved
- Suitable for fire-rated doors
- Very high anti-corrosive performance to BS EN Grade 4
- Suitable for wooden doors up to 120 minutes fire rating
- Suitable for metal doors up to 240 minutes fire rating

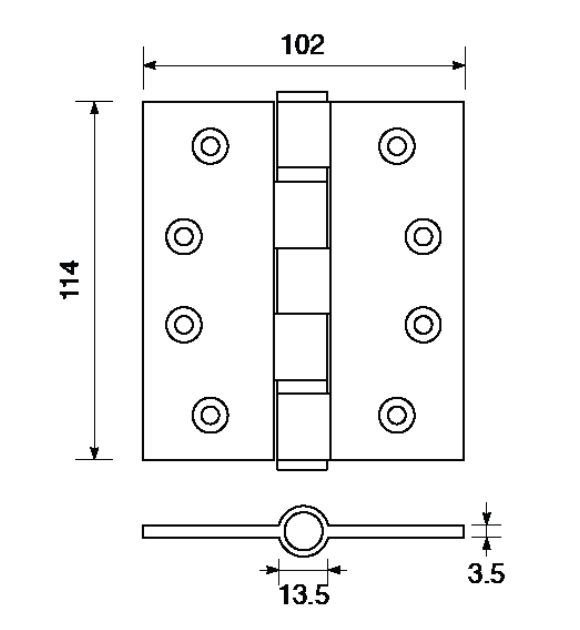

| Code | Length x Width x Thickness MM |
Screws per hinge Countersunk Head |
Effective Door Weight (Kg) |
EN1935 Grade |
||
|---|---|---|---|---|---|---|
| Size | Type | Qty. | ||||
| 89.375 | 114 x 102 x 3.5 | 1¼ x 10 | S/S | 8 | 120 | 13 |
Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead Door Closer
