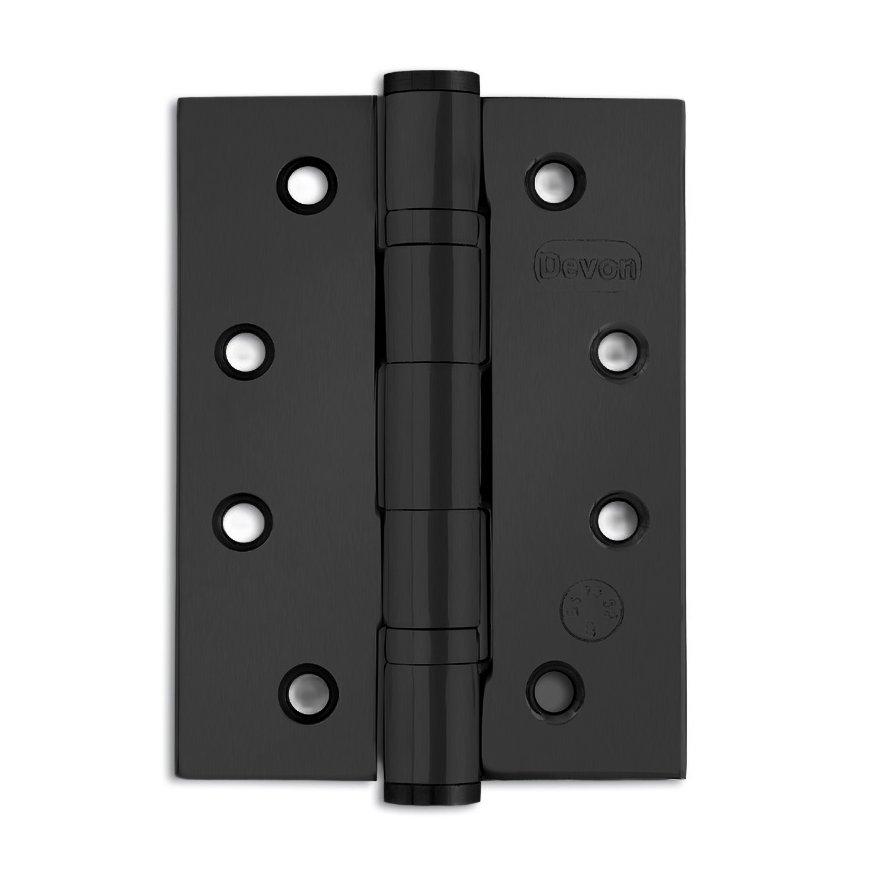

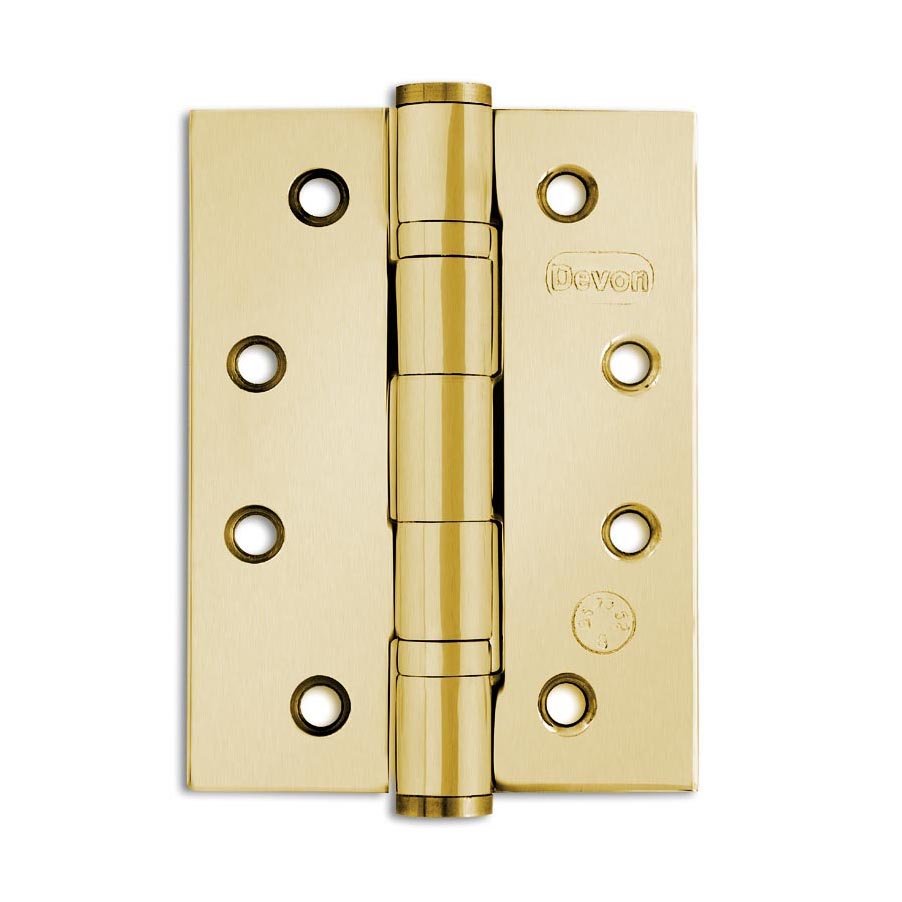

89.100
Stainless Steel Double Ball Bearing Hinges
High quality UL listed hinge with stainless steel fixed pin,
2 thrust bearing and button tip at both ends.
• Available with congruent (zig zag) or template
drilled screw holes.
• For timber door/metal frame application half
wood/half machine screws (size ½ x 12-24)
are supplied. Please specify.
• Suitable for fire rated doors, comply with EN1634
• Successfully included in fire door test upto 120 minutes
• Available with security dog bolt upon request.

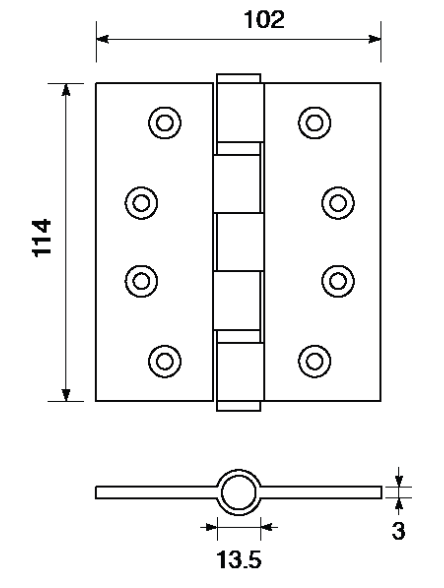

| Code | Length x Width x Thickness MM |
Screws per hinge Countersunk Head |
Effective Door Weight (Kg) |
EN1935 Grade |
||
|---|---|---|---|---|---|---|
| Size | Type | Qty. | ||||
| 89.100 | 114 x 102 x 3.4 | 1¼ x 12 | S/S | 8 | 120 | 13 |
Weight capacity is based on three hinges per door
Add one more hinge on the door installed with overhead door closer
